Tailor your workspace solution with our interactive configuration tool to match your exact needs.
⚙️
Price:
$1100-$1700
Model:
SOP-PB101
Exterior Size:
1000*1000*2300mm
Internal Size:
810x810x1990mm
Maximum Occupancy:
Material:
1.5mm sheet metal, 12mm high-frequency soundproof tempered glass, 15mm fireproof soundproof board, 12mm polyester fiber acoustic board, 50mm eco-friendly soundproof cotton.
Power:
100-240V / 50-60Hz
Light:
18W three-color energy-saving lighting system
Voltage:
110-240V
Weight:
250kg
Certification:
ISO CE
Location dossier · SOP-PB101
A soundproof private phone booth for office work succeeds or fails in the route around it. Observe where private calls begin, how far users walk, whether they cross quiet work areas, where they wait, and how the door opens into circulation. This location evidence is more useful than placing a booth in an empty corner because the footprint appears compact.
The available specification lists an internal size of 810x810x1990mm and a weight of 250kg. Mark the footprint, door movement, approach, and service clearance on the floor plan, then test the path during a normal work period.
Count the teams that need short calls, video meetings, quiet study, or another listed use. Note peak periods and expected session length. These observations guide booth quantity and location without turning the compact 810x810mm interior into a general meeting room.
Measure doorways, corridors, turns, lift, ceiling, and assembly zone. Confirm floor suitability for the listed 250kg weight. Keep emergency routes, accessibility requirements, and normal office circulation in the site team's review.
The specification lists a foldable 15mm desktop board, bar chair, carpet, and aluminum-alloy door lock. Confirm which items are included and map the laptop, camera, headset, and cable positions within the stated 810x810x1990mm interior.

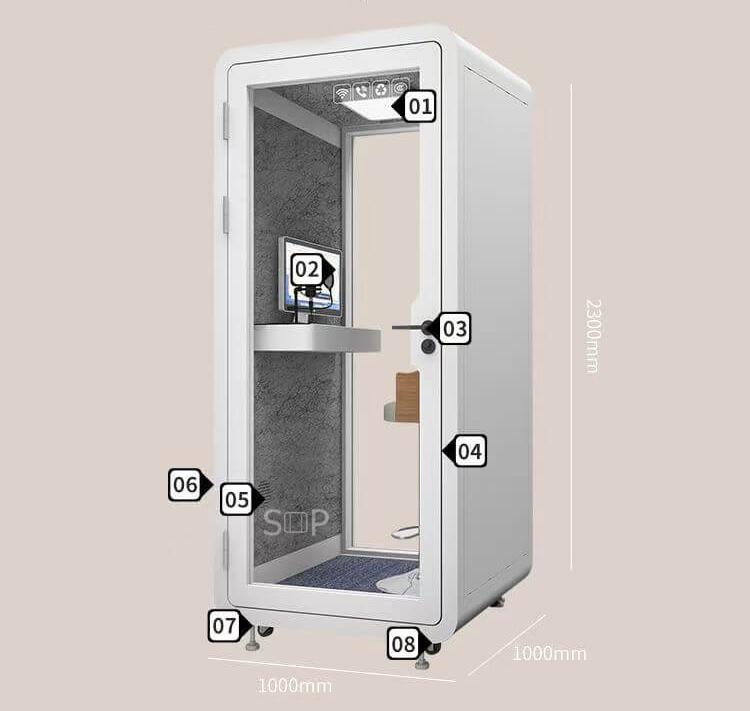

One available dimension entry lists 1000*1000*2300mm outside, while a separate specification table lists an external size of 1.0 x 1.0 x 2.2m. Require one quotation drawing to settle the height, door opening, module sizes, and assembly clearance. Electrical entries also differ: one states 100-240V/50-60Hz and another states 110V-240V/50Hz. Confirm regional voltage, frequency, plug, socket location, USB option, and network interfaces for the exact unit.
The specification records two 120mm oil-bearing ventilators at 12VDC, 1500 +10% RPM, and 3.24W, plus an 18W three-color lighting system. Ask where air enters and exits, how controls work, and how fans can be cleaned or serviced. At handover, operate the supplied light, ventilation, sockets, network connection, door, lock, desk, and leveling arrangement.
The available specification records 40dB with a ±10dB notation and lists sheet metal, tempered glass, fireproof soundproof board, polyester fiber acoustic board, and soundproof cotton. Request supporting acoustic evidence for the assembled configuration. Reduced speech spill does not by itself guarantee confidentiality, so define the office privacy requirement separately.
Decide which team manages booking, cleaning, fault reporting, and periodic checks of the fan, light, socket, network interface, lock, desk, and leveling arrangement. A compact booth can become unavailable quickly if these responsibilities are left between facilities and workplace teams.
The available material entry lists 1.5mm sheet metal, 12mm tempered glass, a 15mm fireproof soundproof board, a 12mm polyester fiber acoustic board, and 50mm soundproof cotton. Ask the supplier to restate the quoted layers, finish, replacement parts, and care instructions without assuming that every listed option is included.
Available dimensions include both 2300mm and 2.2m external-height entries. Use a quotation drawing for the exact SOP-PB101 revision before finalizing ceiling or assembly clearance.
Confirm regional voltage, frequency, plug, socket position, USB option, network interfaces, installation method, and the final specification because the available frequency entries differ.
No. The enclosure may reduce surrounding disturbance and speech spill, but confidentiality depends on the required privacy level, installed configuration, acoustic evidence, location, and office procedures.
| Model No. | SOP-PB101 | |||||||||||||
| Usage: | Telephone booths, recording studios, small instrument practice rooms, e-sports live broadcast rooms, study rooms. | |||||||||||||
| Material: | 1.5mm high-quality sheet metal, 12mm high-frequency soundproof tempered glass, 15mm fireproof and soundproof board, 12mm polyester fiber sound-absorbing board, 50mm environmentally friendly soundproof cotton. | |||||||||||||
| Size: | External dimensions: 1.0 x 1.0 x 2.2m. Internal size: 0.81 x 0.81 x 1.99m. | |||||||||||||
| Ventilation system, lighting: | Ventilation system: Two 120mm oil-bearing ventilators (12VDC) 1500+10% RPM speed / 3.24W. Lighting: 18W three-color energy-saving lighting system. | |||||||||||||
| Additional supporting facilities: | Foldable 15mm desktop board, bar chair, carpet, aluminum alloy door lock. | |||||||||||||
| Line configuration: | Power supply: 110V-240V/50Hz. Power socket: a control switch + socket (American, British, European, Israeli, etc. 110/240V can be connected to USB). Internal and external network cable interface. | |||||||||||||
| Sound insulation: | 40dB (±10dB) | |||||||||||||
| Warranty: | Wearing parts (lights, fans, door locks) are replaced within 3 months. Metal frame glass, main line socket warranty for one year. | |||||||||||||
