Removable Anytime
Move or adjust your setup easily with flexible modular design.
Price:
$1600-$2600
Model:
SOP-MP108
Exterior Size
customize
Internal Size:
customize
Maximum Occupancy:
2-4 persons
Material:
Steel, Aluminum, Fiber acoustic board, laminated glass
Power:
100-240V / 50-60Hz
Light:
24W soft light source
Voltage:
110-240V
Weight:
250-800kg
Certification:
ISO CE
Procurement reconciliation | Meeting pod
An office meeting pod should be released against one configuration baseline. Available product information refers to both SOP-MP108 and SOPM4, but neither name should be assumed to define the selected configuration. Model identity, dimensions, installed weight, construction, services, and included equipment must be released together under one model or project code.
Place the selection on hold until the supplier returns a dated configuration drawing, specification, material schedule, service drawing, and transport plan carrying that same code. No floor, route, lift, or quantity approval should rely on a generic dimension or weight.
| Decision area | Supplier must return | Buyer must check | Release rule |
|---|---|---|---|
| Identity | One model or project code on every document | Quotation, drawings, schedules, and evidence use the same code | No mixed identity |
| Dimensions | Outer envelope and clear internal configuration drawing | Door, furniture, users, equipment, and service clearances fit | Signed drawing required |
| Site loads | Selected configuration's installed weight, support footprint, and point loads | Qualified local review for the proposed floor and position | No floor approval without confirmed loads |
| Transport | Package-piece dimensions and weights, lifting plan, and assembly sequence | Doors, corners, lift, handling path, and assembly zone | No route approval without package data |
| Materials and services | Layer schedule, finish samples, electrical and control drawing | Selected scope matches site requirements | Same project code throughout |
Available occupancy guidance is 2-4 persons. Translate that range into a normal meeting scenario: number of seated users, table size, laptop or display position, camera distance, notes, bags, and the route from each seat to the door. A two-person interview and a four-person hybrid meeting require different clear internal space.
Show the door approach, surrounding circulation, ceiling services, and any accessibility requirement on the same plan. The pod is described as convertible, extendable, and modular, but those labels do not explain which panels or dimensions can change. Ask the supplier to mark fixed and configurable elements on the drawing.
Do not use any generic or previously published weight as a floor or transport planning reference. Obtain the selected configuration's installed weight, support footprint, point loads, package-piece dimensions and weights, lifting plan, and assembly sequence before a floor location, lift booking, handling route, or installation method is approved.
After those documents are issued, measure loading access, entrance doors, corridors, corners, lifts, and the final assembly zone against each package piece. The floor review should use the confirmed support geometry and loads, not only a total weight.

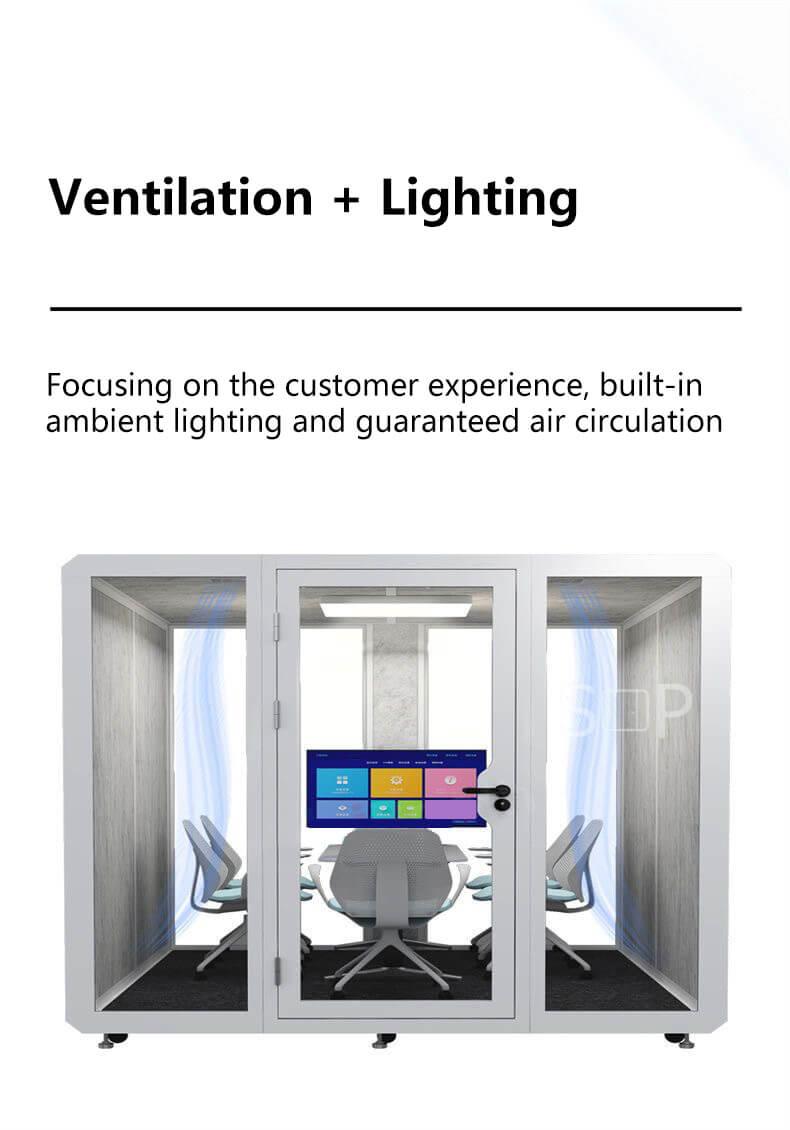

Available electrical information references 100-240V / 50-60Hz, a 110-240V connector, and a 24W soft light source. Airflow modes, lighting options, presence detection, connectivity, and booking functions remain unconfirmed unless the supplier places them on the selected configuration's quotation and service drawing.
For the project brief, specify the destination voltage, socket standard, screen and camera equipment, network need, lighting task, session duration, and desired ventilation controls. Ask for a service drawing showing every connection and control included in the quotation.
ISO, CE, and speech-reduction language appear in the available product information. If acoustic, electrical, fire, material, or certification evidence is required, request the applicable documents, original test wording, tested specimen, project or model reference, and destination relevance. Evidence should follow the selected configuration rather than a general product family.

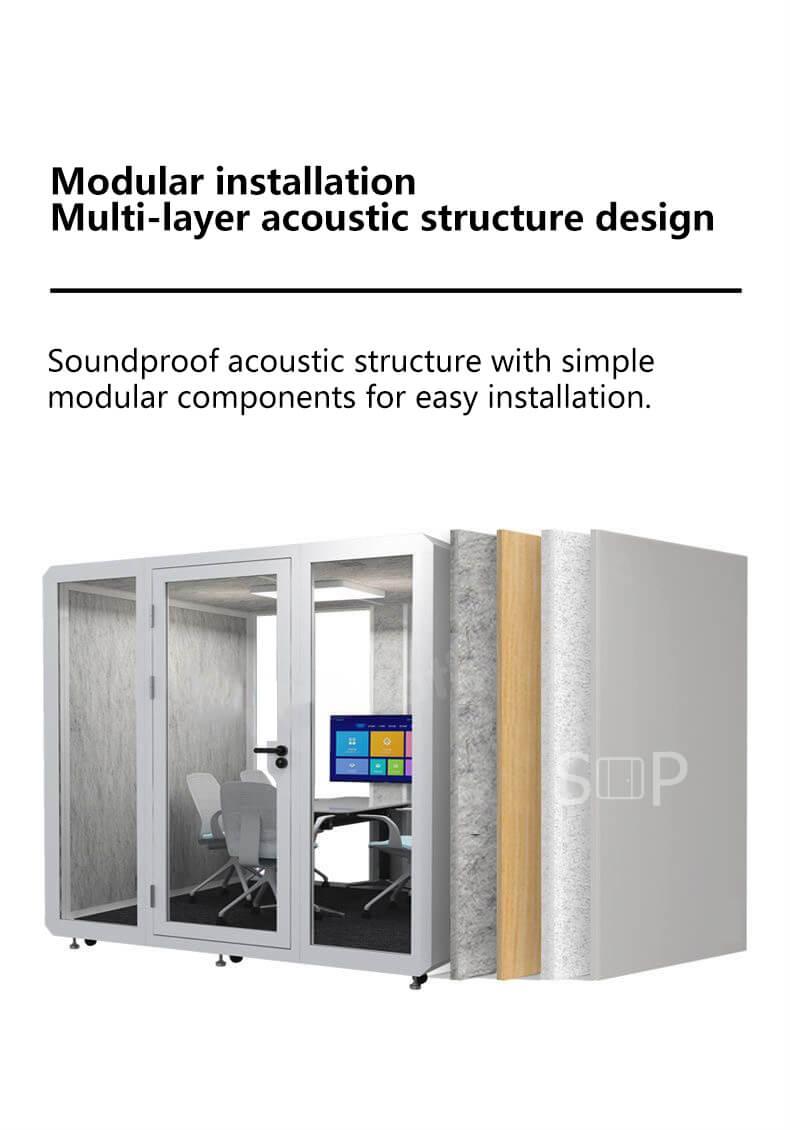

The final material schedule should identify the selected steel, aluminum, acoustic board, glazing, insulation, floor, and finish components. Samples can then be reviewed against the same project code.
Place the selection on hold until the supplier assigns one model or project code to the quotation, configuration drawing, specification, schedules, and supporting documents.
Obtain the selected configuration's installed weight, support footprint, point loads, package-piece dimensions and weights, lifting plan, and assembly sequence. Do not use a generic weight as an interim planning value.
The supplier should list every included control, sensor, airflow function, connectivity item, and booking function on the selected configuration's quotation and service drawing.
| Model |
SOP-MP108 |
||||
|
Exterior Size |
W3000*D4236*H2300mm | ||||
| Weight | 1587kg | ||||
| Material |
Sound insulation Cotton+Plywood+Double Layer Galvanlzedsteel Board |
||||
| Power | 100-240V / 50-60Hz | ||||
|
Features |
Convertible, Extendable, Modular, Other | ||||
Discover a smart office pod for up to 4 people with A-Class acoustic privacy, automated ventilation, and app-based booking for focused work and hybrid meetings....
Plan a portable silent meeting pod around relocation routes, floor loading, power, seating, and workspace change before confirming SOP-MP106....
Our modular system allows you to create efficient acoustic spaces without complex setup. Save time, reduce effort, and achieve professional results quickly.
Move or adjust your setup easily with flexible modular design.
Install without construction work, saving both time and cost.
