Price:
$1600-$2000
Model:
SOP-RB105
Exterior Size
D2100*W1600*H2200 mm
Internal Size:
D1900*W1400*H1940 mm
Maximum Occupancy:
2-4 persons
Material:
High elastic importing mesh Aluminum base with sound silience PU castor; Selling Points Unique design, excelsior structure, ergonomic mind.
Power:
110 - 240V/50Hz & 12V-USB
Light:
4000K natural light
Voltage:
110-240V
Weight:
800kg
Certification:
ISO CE
An acoustic isolation booth for recording is part of a signal chain, not a stand-alone promise of clean audio. List the source, microphone position, performer movement, interface, monitor or headphones, computer location, cable path, and session duration. Then state which disturbances matter: reflections inside the booth, sound entering from the room, sound leaving the booth, or vibration through the structure.
SOP-RB105 is listed for two to four people, with an external size of D2100*W1600*H2200mm, an internal size of D1900*W1400*H1940mm, and a listed weight of 800kg. Verify that this envelope works for the actual recording arrangement and access route.
Measure the instrument or performer in working position. Add stand bases, chair movement, camera or lyric display, and a clear path to the door. For a multi-person session, draw every position rather than relying on the two-to-four-person entry.

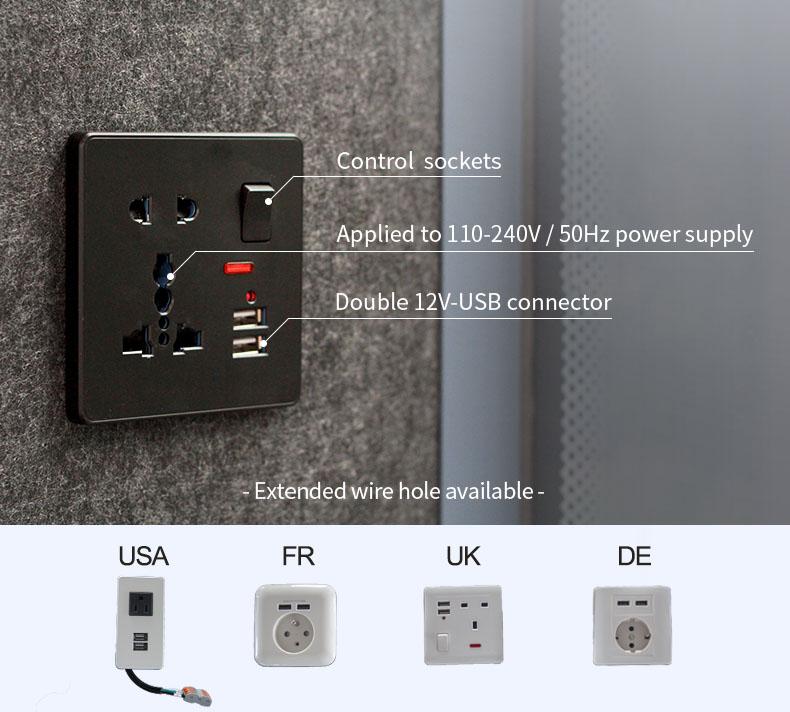

The available specification lists 110-240V/50Hz with 12V-USB. Document the power draw and connector type of each device, decide what remains outside, and ask for the cable interface location and usable opening. Confirm the regional socket and final wiring arrangement.
The specification lists two 120mm oil-bearing ventilators at 12VDC, 1500 ±10% RPM, and 3.24W. Ask how air enters and exits, how fans are controlled and serviced, and what configuration applies to the proposed session length and equipment heat.
The available specification records 60% sound-absorbing material and 30dB with a ±10dB notation. It does not state the full assembly, test method, specimen, frequency conditions, or receiving environment. Interior absorption and room-to-room isolation answer different recording problems. Request supporting evidence for the quoted assembled configuration and define an acceptance check that reflects the intended source.
Lighting is recorded as 4000K natural light, with a separate specification entry of 150 lux. Confirm the quoted light arrangement if camera work, score reading, or color-sensitive tasks are part of the session. The specification also names a nanometer PP facing and several resistance properties; request the exact material sheet and supporting documents rather than converting those labels into an unqualified durability or safety claim.
| Recording risk | Before quotation | At handover |
|---|---|---|
| Equipment fit | Scaled source and signal-chain layout | Check working positions and door route |
| Electrical path | Device list, load, sockets, cable interfaces | Test every supplied connection |
| Air and light | Session length, heat load, visual task | Operate the quoted fans, controls, and lights |
| Acoustic condition | Define internal and external noise questions | Use the agreed method for the installed booth |
Provide a scaled layout showing performers, instruments, stands, furniture, cable interfaces, equipment kept outside, movement clearance, and the route to the door.
The available specification records 30dB with a ±10dB notation, but the test method and configuration are not stated. Request supporting evidence before using the value in a recording-room comparison.
Check working positions, door operation, every supplied electrical and cable connection, fan and light controls, finishes, documents, and the agreed acoustic acceptance method.
| Material | 60% sound-absorbing material. |
|---|---|
| Size | D2100 × W1600 × H2200 mm |
| Usage | Suitable for offices, schools, homes, recording studios, exhibition halls, libraries, hospitals, shopping malls, and similar environments. |
| Ventilation system | Two 120 mm oil-bearing ventilators (12 VDC), 1500 ± 10% RPM, 3.24 W. |
| Lighting | 4000K natural light, 150 lux. |
| Additional supporting facilities | Nanometer PP facing, resistant to friction, pollution, ultraviolet rays, fire, and moisture. |
| Sound insulation | 30 dB (±10 dB) |
| Power supply | 110V–240V / 50Hz |
