Price:
$1100-$1700
Model:
SOP-RB104
Exterior Size
1000x1000x2300mm
Internal Size:
810x810x1990mm
Maximum Occupancy:
1 person
Material:
High elastic importing mesh Aluminum base with sound silience PU castor; Selling Points Unique design, excelsior structure, ergonomic mind.
Power:
110V-240V/50HZ
Light:
18W three-color energy-saving lighting system
Voltage:
110-240V
Weight:
250kg
Certification:
ISO CE
Recording setup sheet / SOP-RB104
A flexible acoustic recording booth should be reviewed as part of the complete signal chain: source, microphone, performer position, internal reflections, ventilation noise, cable route, and the room outside. SOP-RB104 is listed with a 1000x1000x2300mm outside size and an 810x810x1990mm inside size for one person. That compact working envelope can suit vocals, voice-over, podcasts, small-instrument practice, and other listed uses, but each source needs its own movement and equipment check.
A preliminary configuration value gives sound insulation as 40dB with a 10dB tolerance notation. This is not a complete performance guarantee. Before using it in a studio decision, request the original symbol, test method, frequency scope, specimen construction, door condition, and configuration to which the value applies.
List every item that crosses the booth boundary: microphone cable, headphones, monitor feed, network connection, instrument cable, laptop power, or an external audio interface. Then decide which equipment stays inside and which stays outside. Ask the quotation to state whether a 100mm desktop board, bar chair, carpet, and aluminum alloy door lock are included, and confirm that the arrangement fits the intended recording workflow.
Source zonePerformer posture, instrument envelope, microphone distance, stand base, and lyrics sheet or screen position.
Service zone110V-240V / 50Hz supply, cable paths, lighting controls, and any equipment heat inside the enclosure.
Receiver zoneControl position, monitoring route, adjacent room use, and the background condition that must be reduced.

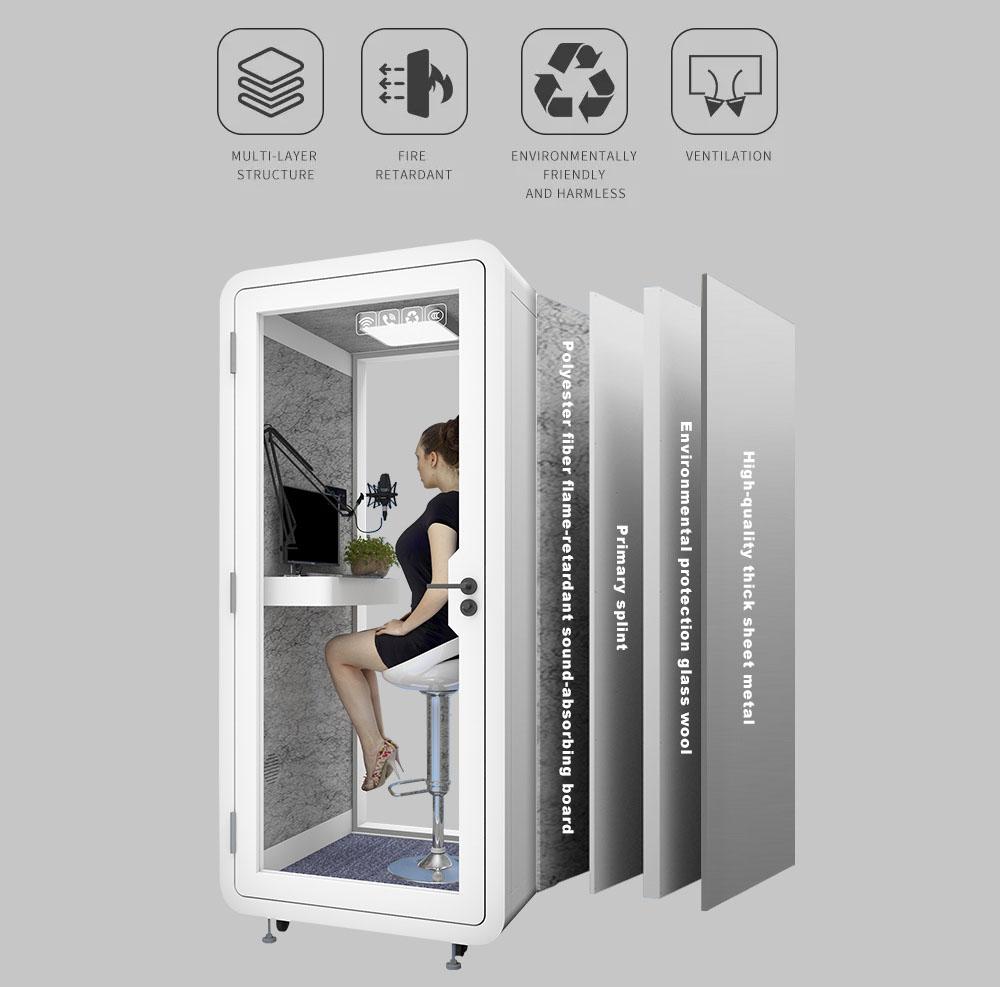

The reference configuration names 1.5mm sheet metal, 12mm soundproof tempered glass, 15mm fireproof and soundproof board, 12mm polyester fiber sound-absorbing board, and 50mm soundproof cotton. These descriptions do not replace a project-specific drawing, material data, or acoustic test report. If fire or environmental performance affects approval, request the documents that apply to the exact materials supplied.
The reference ventilation configuration uses two 120mm oil-bearing ventilators at 12VDC, with 1500+10% RPM and 3.24W notation. Lighting is described as an 18W three-color energy-saving system. Confirm whether these values describe each component or the system, where controls are located, and how ventilation noise is evaluated during a quiet recording.
| Decision | Project input | Evidence to request |
|---|---|---|
| Fit | Performer, stand, instrument, screen, and movement | Dimensioned interior and furniture drawing |
| Acoustics | Source level and adjacent-room requirement | Test method and result for the offered construction |
| Services | Power, cables, lighting, ventilation, and heat | Electrical and ventilation schedule |
| Site | Access route, floor, assembly area, and final position | Installation drawing and handling requirements |
No. It is a supplier-provided specification with a tolerance notation. Request the original test method, specimen, frequency scope, and configuration, then compare those conditions with the intended source and receiver rooms.
Mark the area and place the performer, chair if used, microphone stand, instrument, screen, and cables inside it. Confirm movement and door use before approving the configuration.
Confirm the supplied fan configuration, airflow, controls, and operating noise for the quoted booth. Evaluate comfort and noise during the actual session type rather than from component labels alone.
| Material | 1.5mm high-quality sheet metal, 12mm high-frequency soundproof tempered glass, 15mm fireproof and soundproof board, 12mm polyester fiber sound-absorbing board, 50mm environmentally friendly soundproof cotton |
|---|---|
| Size | External dimensions: 1000x1000x2300mm. Internal size: 810x810x1990mm |
| Usage | Telephone booths, recording studios, small instrument practice rooms, e-sports live broadcast rooms, study rooms |
| Ventilation system | Two 120mm oil-bearing ventilators (12VDC), 1500+10% RPM speed / 3.24W |
| Lighting | 18W three-color energy-saving lighting system |

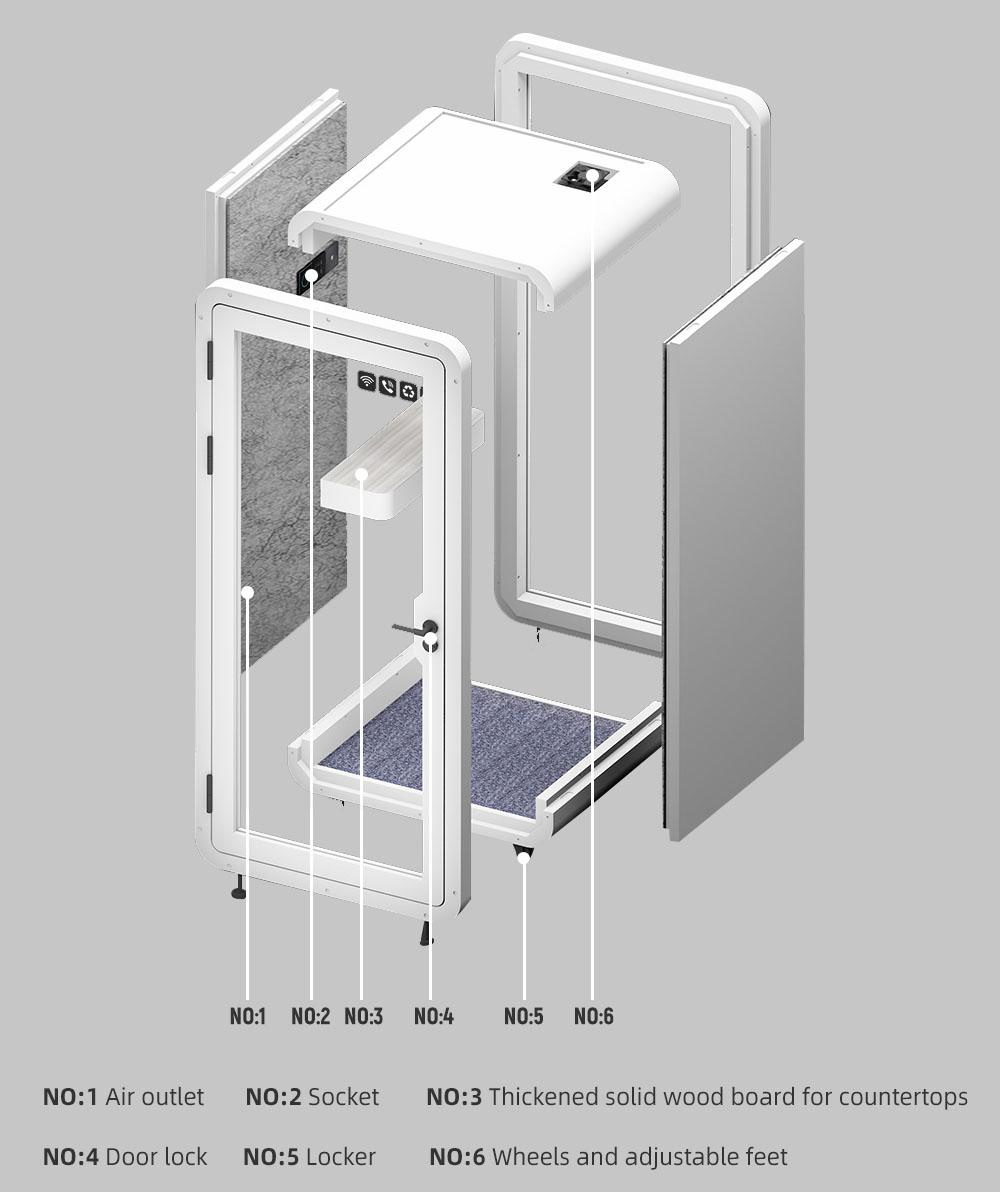

| Additional supporting facilities | 100mm desktop board, bar chair, carpet, aluminum alloy door lock |
| Sound insulation | 40dB (±10dB) |
| Power supply | 110V-240V / 50Hz |
Acoustic performance values are as provided by the supplier; confirm the exact sound reduction rating for your specific recording application before ordering.
