Price:
$1200-$2000
Model:
SOP-FH103
Exterior Size
1500x1500x2200m
Internal Size:
1300x1300x1990mm
Maximum Occupancy:
1-3 Persons
Material:
steel
Power:
110V-240V/50HZ.
Light:
4000K / 1600Lsx natural lighting system
Voltage:
110-240V
Weight:
500 kg
Certification:
ISO CE
Residential rest-space review · SOP-FH103

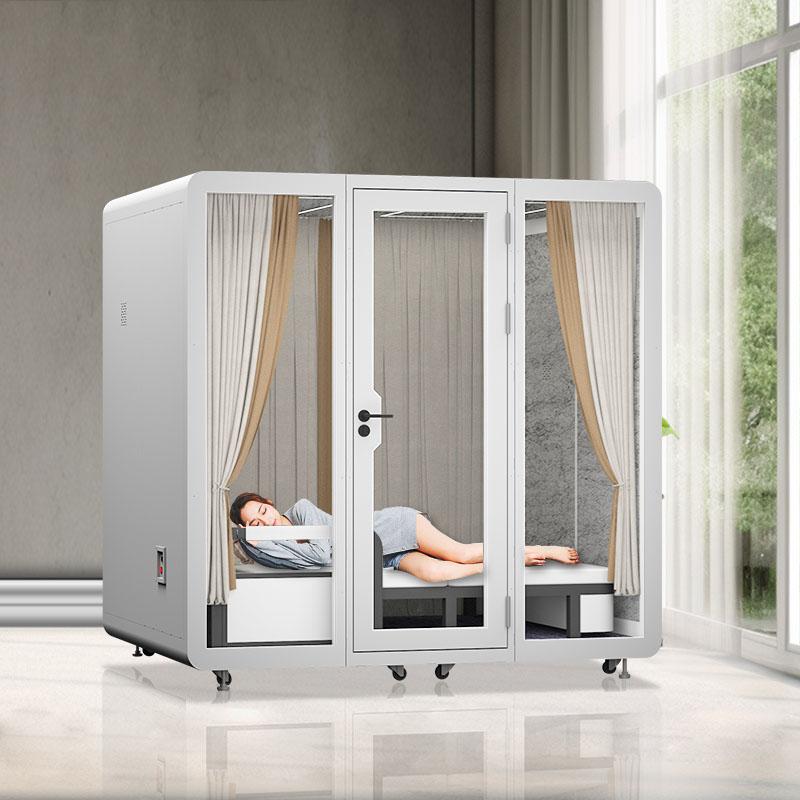

A soundproof sleeping cabin for home use changes how a room is occupied after dark. The useful first question is not whether an enclosure looks quiet; it is whether the proposed location supports entry, airflow, power, household circulation, and a clear response if the occupant needs help. Map those conditions before discussing colors or optional finishes.
The available specification describes a steel cabin for one to three people and lists a weight of 500 kg. That combination calls for a site-specific floor review and a measured delivery route. Occupancy is a configuration entry, not proof that every sleeping arrangement or local residential requirement has been addressed.
Note the room, normal sleeping hours, adjacent sources of noise, door and corridor widths, ceiling height, nearby socket, and the people responsible for daily checks. Leave enough surrounding clearance for the door and service access. Local fire, electrical, accessibility, and residential rules remain project checks rather than product assumptions.
The available specification does not provide one consistent external envelope. One entry shows 1500x1500x2200 with an incorrect metre suffix, while another table shows 2.1 x 1.6 x 2.2 m. An internal entry shows 1300x1300x1990mm. Do not design the room around any one of these values. Ask the supplier to identify the exact quoted model, external size, internal usable size, packed modules, and assembly clearance on the same drawing.
The available specification lists two 120 mm oil-bearing ventilators operating at 12VDC, with a stated speed of 1500 +10% RPM and 3.24W. It also lists 110V-240V/50Hz power, a control switch, a five-hole socket, an optional USB connection, and internal and external network interfaces. Confirm the final fan arrangement, regional plug, socket position, cable route, and continuous-use guidance for the supplied cabin.
Lighting is recorded as 4000K, but another lighting value contains the unclear text “1600Lsx.” The quotation should restate the light output in an unambiguous unit instead of carrying that string forward.
Agree who may use the cabin, how the door remains accessible, how ventilation is checked, and who responds to a fault. The product title does not establish medical use, emergency monitoring, or compliance with a particular residential code. Those questions belong to the homeowner and the responsible local professionals before an enclosed rest space is approved.
Available specifications contain conflicting external dimensions, so room planning should wait for a quotation drawing that identifies the exact model, external and internal sizes, packed modules, and required assembly clearance.
Ask for the final fan quantity and specification, airflow arrangement, controls, maintenance access, and guidance for the intended occupancy and duration of use.

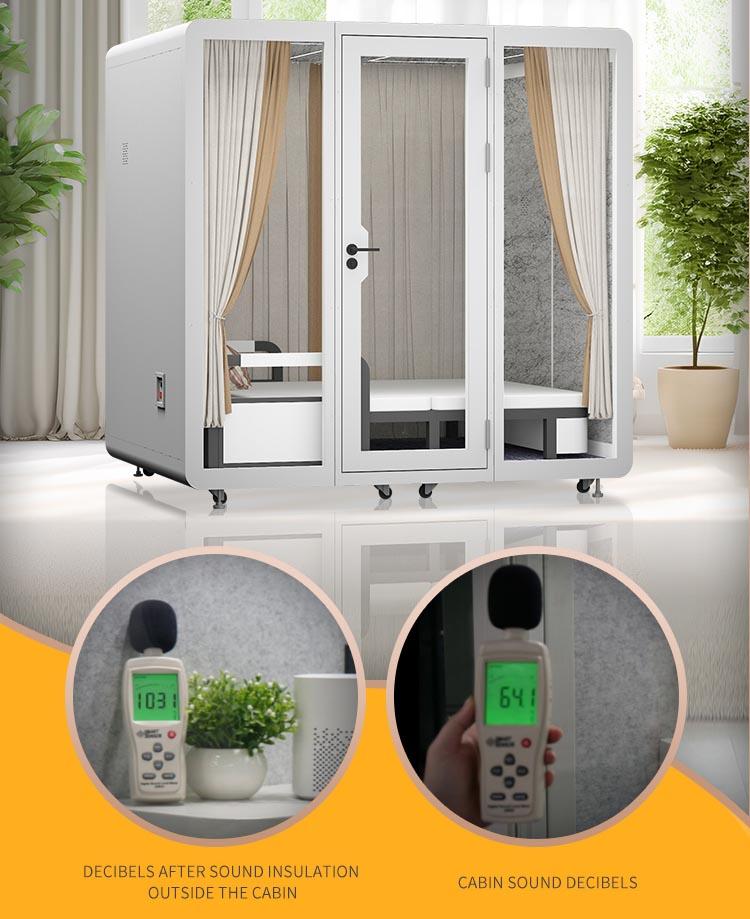

No. The available specification records 40dB with a ±10dB notation, but the test method and conditions are not stated. Request supporting acoustic evidence and assess it against the actual household noise source.
| Sound insulation | 40dB (±10dB) |
|---|---|
| Size | 2.1 x 1.6 x 2.2 m (W x D x H) |
| Power supply system | 110V–240V / 50Hz |
| Ventilation system | Two 120mm oil-bearing ventilators (12VDC), 1500+10% RPM speed, 3.24W |
| Power socket | One control switch + 5-hole socket (110/240VAC, USB can be attached). Internal and external network cable interface. |
