Price:
$1600-$2000
Model:
SOP-MB106
Exterior Size
1800*1500*2300mm
Internal Size:
1600*1300*1940mm
Maximum Occupancy:
2-4 persons
Material:
1.5mm sheet metal+soundproof tempered glass, 15mm fireproof soundproof board+ polyester fiber acoustic board+eco-friendly soundproof cotton.
Power:
100- 240V/50Hz
Light:
6500K Natural Light /OEM
Voltage:
110-240V
Weight:
600kg
Certification:
ISO CE
InstrumentPlayerSignalRoom
A soundproof music practice booth should be selected around a real session: instrument envelope, player movement, music stand, microphone position, monitor or headphones, cables, and the time spent inside. SOP-MB106 is listed for two to four people, but occupancy alone cannot show whether a keyboard, guitar case, teaching position, or recording stand will fit comfortably.
Draw the normal setup at scale and identify what stays inside, what remains outside, and which cables cross the enclosure. This creates a useful configuration brief without promising that one booth arrangement suits every rehearsal or recording task.
Record the instrument dimensions in playing position, not only its storage size. Add chair movement, bow or guitar clearance, stand legs, and a safe entrance path. The available specification lists 600kg, so delivery access, floor suitability, lift limits, turns, and the on-site assembly zone require review before a layout is approved.
One available entry lists 1800*1500*2300mm outside and 1600*1300*1940mm inside. A separate specification table lists W1500*D1256*H2280mm outside and W1340*D1220*H2120mm inside. Neither set should be silently preferred. Require the quotation to state the exact model revision, external envelope, internal usable space, door opening, module sizes, and assembly clearance.
List microphones, headphones, interface, computer, amplifier, network connection, and any device that produces heat. Decide which equipment remains outside and specify the connector sizes and cable count. Available electrical entries list 100-240V, but one states 50Hz while another states 50-60Hz. Ask the supplier to confirm frequency, regional plug and socket format, circuit loading, and cable interfaces for the quoted unit.
Lighting is recorded as 6500K natural light with OEM options, and the specification table refers to a fresh-air equipment system without an airflow value. Confirm fan arrangement, controls, maintenance access, lighting configuration, and expected operating guidance. Evaluate these items against session duration, number of players, and equipment heat rather than assuming the occupancy label settles comfort.

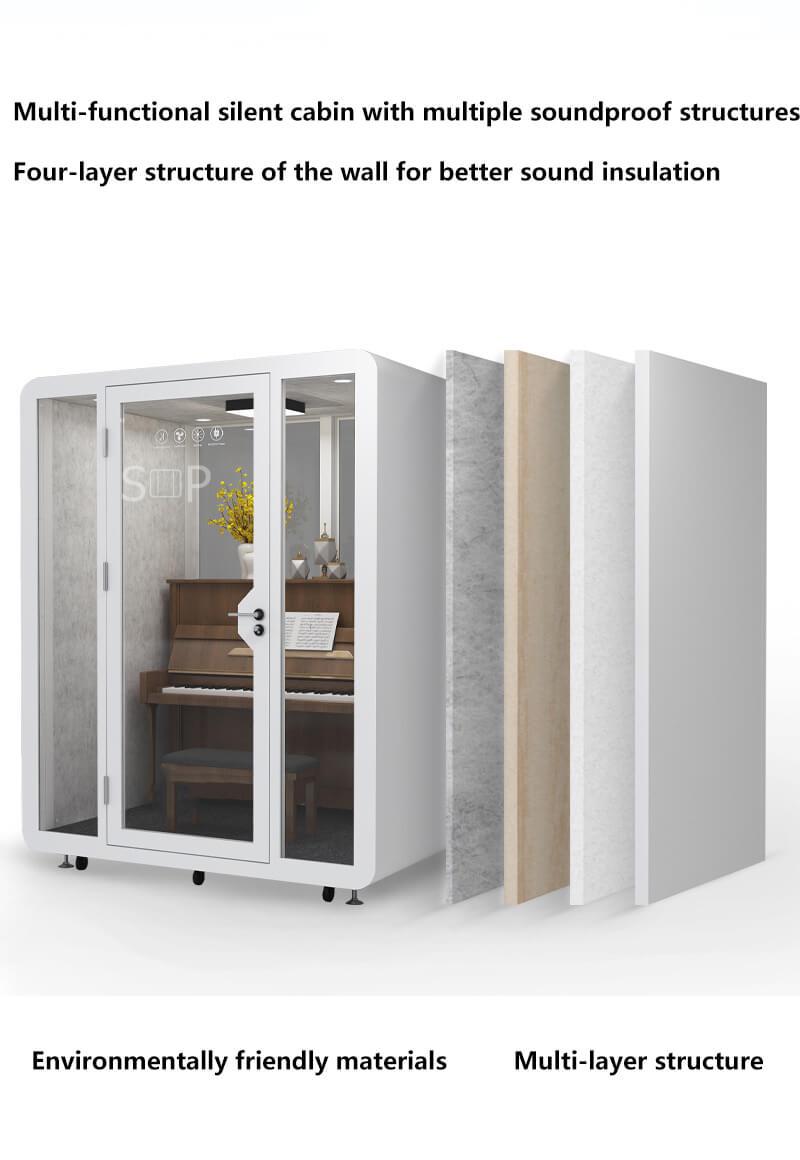

The available material entry lists 1.5mm sheet metal, soundproof tempered glass, a 15mm fireproof soundproof board, polyester fiber acoustic board, and eco-friendly soundproof cotton. These layers describe a proposed construction, not a verified result. Request evidence for both interior reverberation control and sound transmission through the assembled booth because no supporting test method or configuration accompanies an isolation percentage. Ask the quotation to identify layer thicknesses, glazing, seals, surface finish, cleaning guidance, and the acoustic documents tied to the actual model revision. Compare suppliers against the same session, source activity, neighboring-room requirement, and evidence questions.
Draw the instrument in playing position with the player, chair, stands, movement clearance, door route, and recording equipment, then compare that plan with the confirmed internal drawing.
Available specifications contain two conflicting dimension sets. Ask the supplier to identify the exact SOP-MB106 revision and provide one signed quotation drawing with external, internal, door, module, and assembly dimensions.
Request evidence for the quoted assembled configuration that separately addresses internal reverberation control and sound transmission, with the test method and installation condition stated.
| Model | SOP-MB106 |
| Feature | Convertible, Extendable, Modular, Other, Cooling, Removable Cover |
| Material | Steel, Fiber acoustic board, laminated glass |
| Application | Company office space, Commercial building hall, airport wait area/hall, hotel hall and etc. |
| Lighting system | 6500K Natural Light /OEM |
| Power Supply System | 100-240V / 50-60Hz power supply system |
| Air Circulation | Fresh air equipment system |
| Dimension | External size W1500*D1256*H2280 mm, Inner size W1340*D1220*H2120mm |
For detailed acoustic performance data, ventilation capacity, or customization options, please confirm with the supplier.
